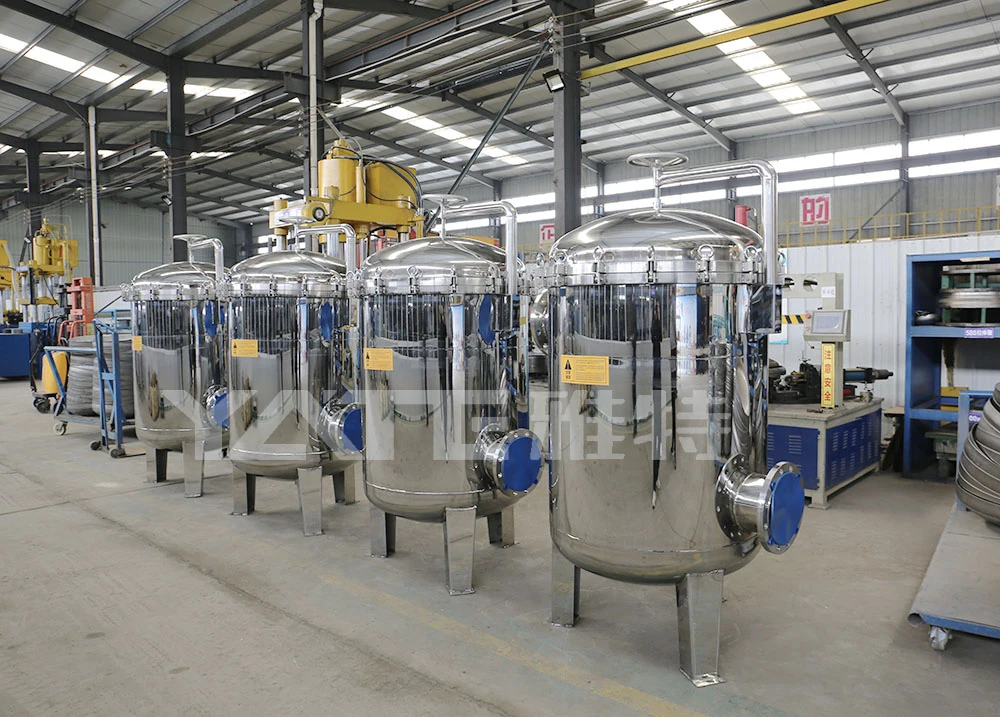

Industrial Stainless Steel 304 Bag Filter Housing for Liquid Solid Separation with 10 Bar Pressure and 0.5-200 μm Precision

Product Categories

Bag Filter Housing [115]
Cartridge Filter Housing [27]
Movable Filter Housing [34]
Liquid Filter Bag [61]
Automatic Self Cleaning Filter [18]
Automatic Backwash Filter [16]
High Flow Cartridge Filter Housing [40]
Basket Filter Strainer [6]
Polypropylene Filter Bag [31]
High Flow Cartridge Filter [10]
Pes Filter Cartridge [16]
Stainless Steel Filter Baskets [11]
Dust Filter Bag [12]

Shandong Yate Filter Material Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Industrial Stainless Steel 304 Bag Filter Housing for Liquid Solid Separation with 10 Bar Pressure and 0.5-200 μm Precision

Name: Industrial Stainless Steel 304 Bag Filter Housing for Liquid Solid Separation with 10 Bar Pressure and 05200 μm Precision
Brand: YATE
Price: 800 USD

Cheap Industrial Stainless Steel 304 Bag Filter Housing for Liquid Solid Separation with 10 Bar Pressure and 0.5-200 μm Precision for sale

Place of Origin : Shandong, China

Brand Name : YATE

MOQ : 1

Price : $800-955

Weight : 150 kg

Material : Stainless Steel 304/316

Working Pressure : 10 bar

Filtration Precision : 0.5-200 μm

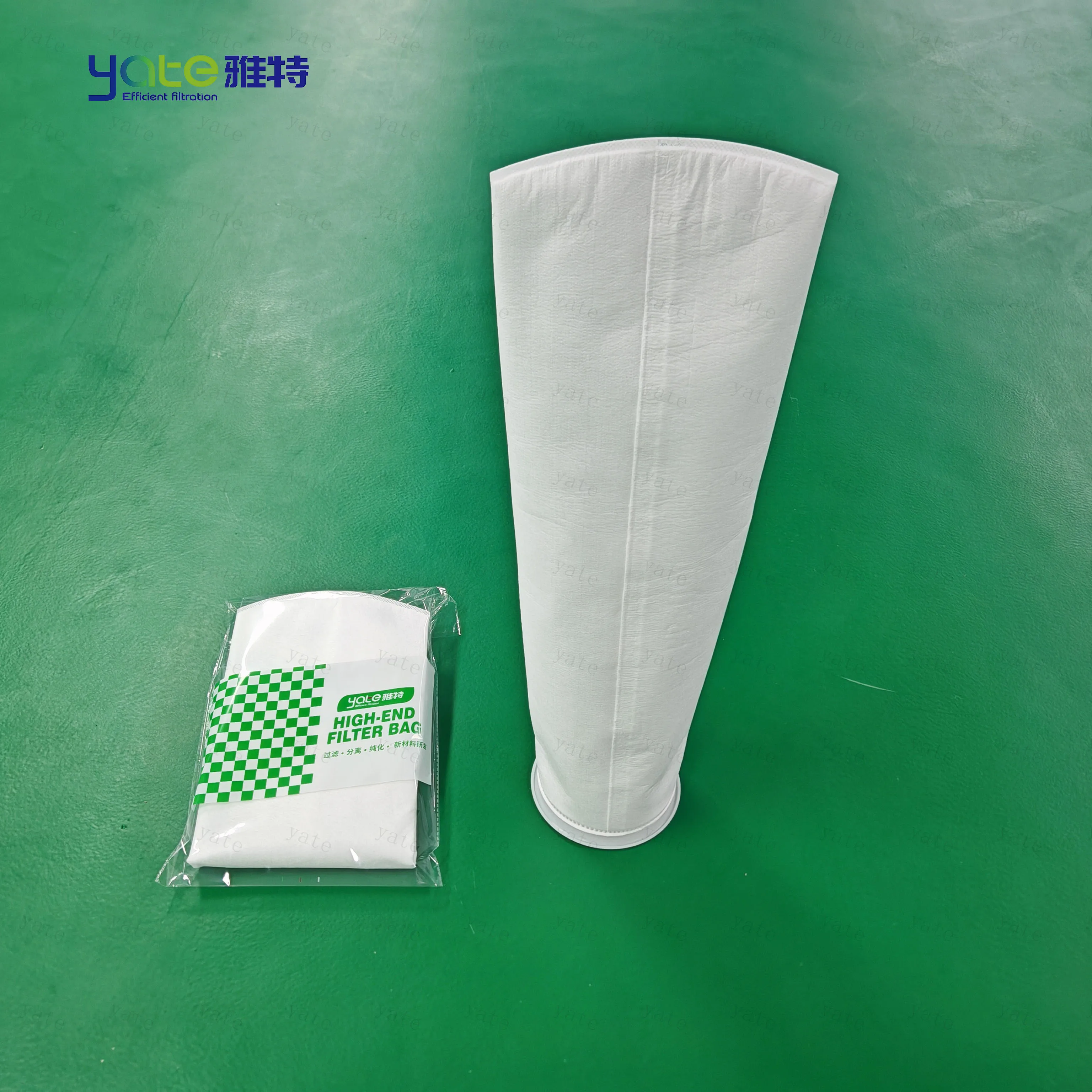

Filter Bag Material : PP/PE/PTFE/SS

Cylinder Diameter : φ219-φ1300mm

Internal Filter Bag Size : 180*430/180*810/105*230/150*380/150*560mm

Inlet Connection : Clamp/Flange/Thread

Design Pressure : 0.8-1.6Mpa

Design Temperature : 70℃-150℃

Sealing Ring Material : Silicone/Fluorine Rubber/EPDM/Nitrile Rubber

Surface Treatment : Polishing/Sandblasting

Filter Area : 1-12 m²

Flow Rate : 60-720T/H

Number of Bags : 1-24

Contact Now

The YATE brand has two factories, one is the filter housing manufacturing factory, and the other is the filter element and filter bag manufacturing factory, 12 years of experience in filtration industry, which can meet your filtering requirements and provide you with a complete filtering solution. We use advanced production technology and sophisticated equipment, and strictly control every process. From material selection to production and packaging, every link strives for perfection to ensure that every detail of the filter housing and filter bag and filter element meets high quality requirements. Please see the introduction below.

Industrial Stainless Steel 304 Bag Filter Housing for Liquid Solid Separation with 10 Bar Pressure and 0.5-200 μm Precision

Specifications Data

Core Advantages

*Excellent filtration efficiency: Precision-designed filter elements can effectively intercept impurity particles as small as microns, ensuring the high purity and clarity of the output liquid, meeting the strict requirements of food, medicine, chemical, electronics and other industries for liquid quality.

*Efficient and energy-saving: The optimized fluid channel design reduces fluid resistance, improves filtration efficiency, and reduces energy consumption, helping enterprises achieve green production.

*Wide Applicability: Suitable for filtering a variety of liquid media, including but not limited to water, oil, chemical solutions, etc., to meet the filtering needs of different industries and different processes.

Core Advantages

*Easy to clean and maintain: The unique detachable structure design makes cleaning and replacing the filter element easy and quick, reducing downtime and improving production efficiency. At the same time, it supports backwashing function to further extend the service life of the filter element.

*Safety and Sanitation: Made of all stainless steel, non-toxic and harmless, with a smooth and easy-to-clean surface, it complies with international health standards such as GMP and FDA to ensure product safety and pollution-free.

Products Details

Bag Filter Bag+Filter Bag		Filter material
Cylinder diameter	φ219-φ1300mm
Material	304/316/2205, etc.
Internal filter bag size	180430/180810/105230/150380/150*560mm, etc.
Internal filter bag filtration accuracy	0.2-200 microns
Inlet and outlet connection method	clamp quick connection/flange/thread
Design pressure	0.8-1.6Mpa
Design temperature	70℃-150℃ (depending on the temperature resistance of the internally installed filter bag)
Sealing ring material	food grade silicone/fluorine rubber/EPDM/nitrile rubber
Surface treatment	food grade internal and external polishing/internal grinding and external sandblasting (customized according to your requirements)

Model selection reference

product Name	Equipment Model	Cylinder Diameter	Inlet and outlet	Design Pressure	Filter Area	Reference traffic
Bag filter housing	YT-GD-2D	Φ400	DN80 Flange	1.0Mpa	1	60T/H
	polypropylene (PP)	YT-GD-3D	Φ450	DN100 Flange	1.0Mpa	1.5	90T/H
	nylon (NMO)	YT-GD-4D	Φ500	DN125 Flange	1.0Mpa	2	120T/H
	teflonethene (PTFE)	YT-GD-5D	Φ600	DN125 Flange	1.0Mpa	2.5	150T/H
		YT-GD-6D	Φ600	DN150 Flange	1.0Mpa	3	180T/H
		YT-GD-7D	Φ680	DN200 Flange	1.0Mpa	3.5	210T/H
		YT-GD-8D	Φ780	DN200 Flange	1.0Mpa	4	240T/H
		YT-GD-10D	Φ900	DN200 Flange	1.0Mpa	5	300T/H
		YT-GD-12D	Φ900	DN200 Flange	1.0Mpa	6	360T/H
		YT-GD-14D	Φ1000	DN200 Flange	1.0Mpa	7	420T/H
		YT-GD-16D	Φ1100	DN200 Flange	1.0Mpa	8	480T/H
		YT-GD-18D	Φ1100	DN200 Flange	1.0Mpa	9	540T/H
		YT-GD-20D	Φ1200	DN250 Flange	1.0Mpa	10	600T/H
		YT-GD-22D	Φ1200	DN250 Flange	1.0Mpa	11	660T/H
		YT-GD-24D	Φ1300	DN250 Flange	1.0Mpa	12	720T/H

Product Description

Strong welds: Fish scale welding can form strong welds, ensure the strength of the welded joints, and improve the overall stability of the welded structure.

Spring pressure piece: The function of the spring pressure piece is to fix the filter bag and make it seal. The spring pressure piece makes the force more uniform and will not cause the risk of leakage.

High-quality lifting ring:

It is related to whether the filter can withstand multiple openings and whether the pressure bearing effect meets the standard, so the Yate factory will choose high-quality and thicker lifting rings.

Rocker arm opening, spring pressure piece: convenient and quick opening, and makes filter bag replacement more convenient and quick

Surface treatment: It can be sandblasted or polished inside and outside according to your requirements.

Below I will introduce you to my stainless steel filter through several sets of detailed comparisons.

Flange thickness and material: YATE factory has its own laboratory, which will conduct water pressure tests on the equipment. Since it needs to meet the pressure standards, the YATE factory will choose thicker flanges to ensure the safe use of the equipment.

Sealing ring:

YATE factory will select suitable and standard fluoro rubber rings for different food and beverage industries and fine chemical industries. Fluorine rubber rings are more expensive and more corrosion-resistant and wear-resistant.

Inner plate thickness:

The YATE factory will choose a thicker inner hole plate, because when we conduct pressure and sealing tests on the filter housing, we find that the thicker inner hole plate has better pressure and sealing performance, and is more in line with safety standards during use.

Appearance of equipment: YATE factory has 12 years of experience in the filtration industry, so no matter in the selection of filters or the appearance design of filters, the user experience and safety issues during use will be taken into consideration. If you know the filtration industry, you should know that there is a risk of leakage if cheap steel is not tested and a thin layer is used, which does not meet the pressure-bearing standard. You can rest assured at YATE, because every device will be tested for water pressure before leaving the factory.

What I want to say to you

We have two professional factories and a professional team with 12 years of experience. We have a very complete system for pre-sales, sales and after-sales services. If you want to know more, you can contact me directly and I will provide you with more information and show you my factory.

Laboratory Testing Equipment

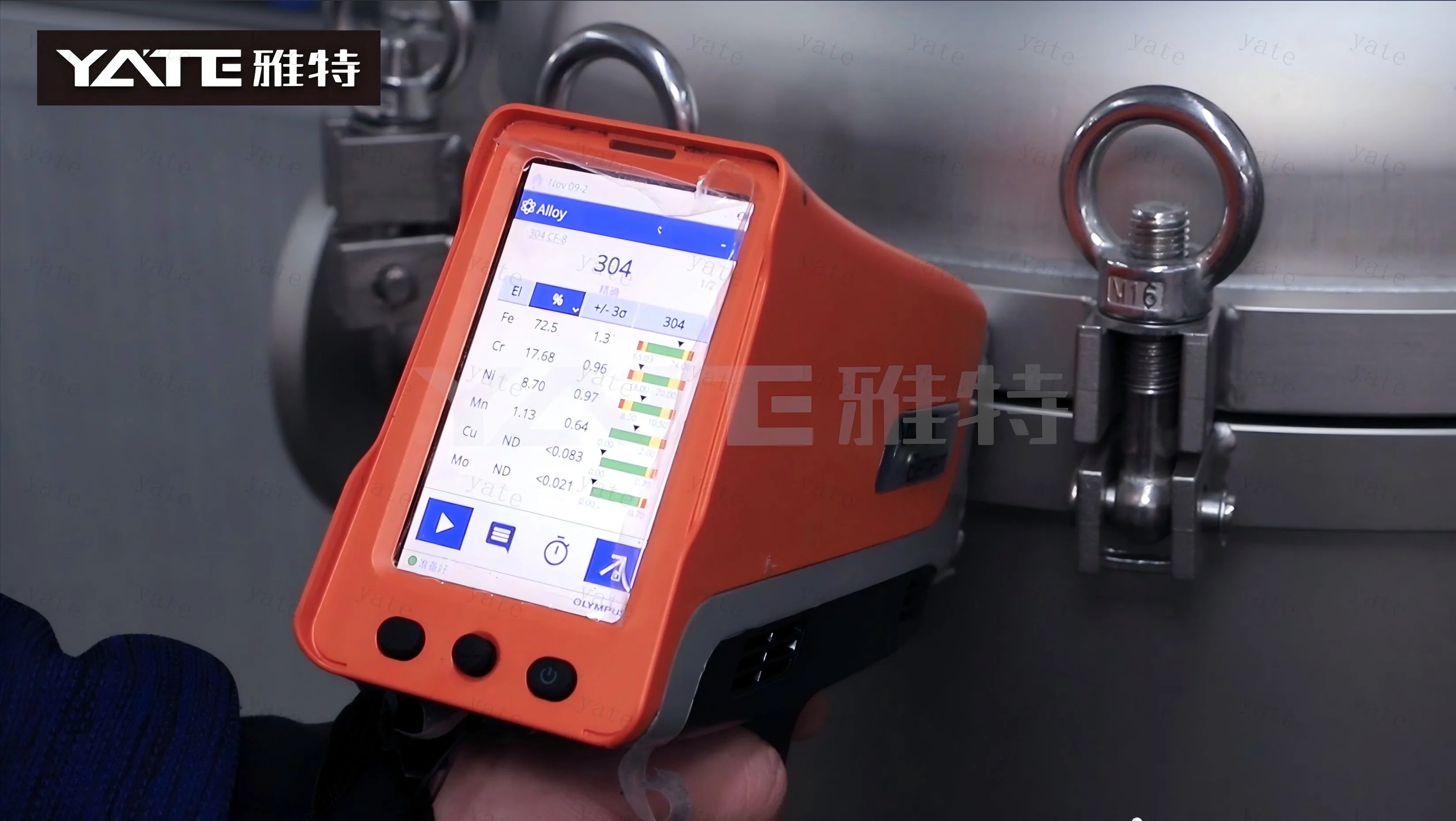

Olympus Spectrum Analyzer

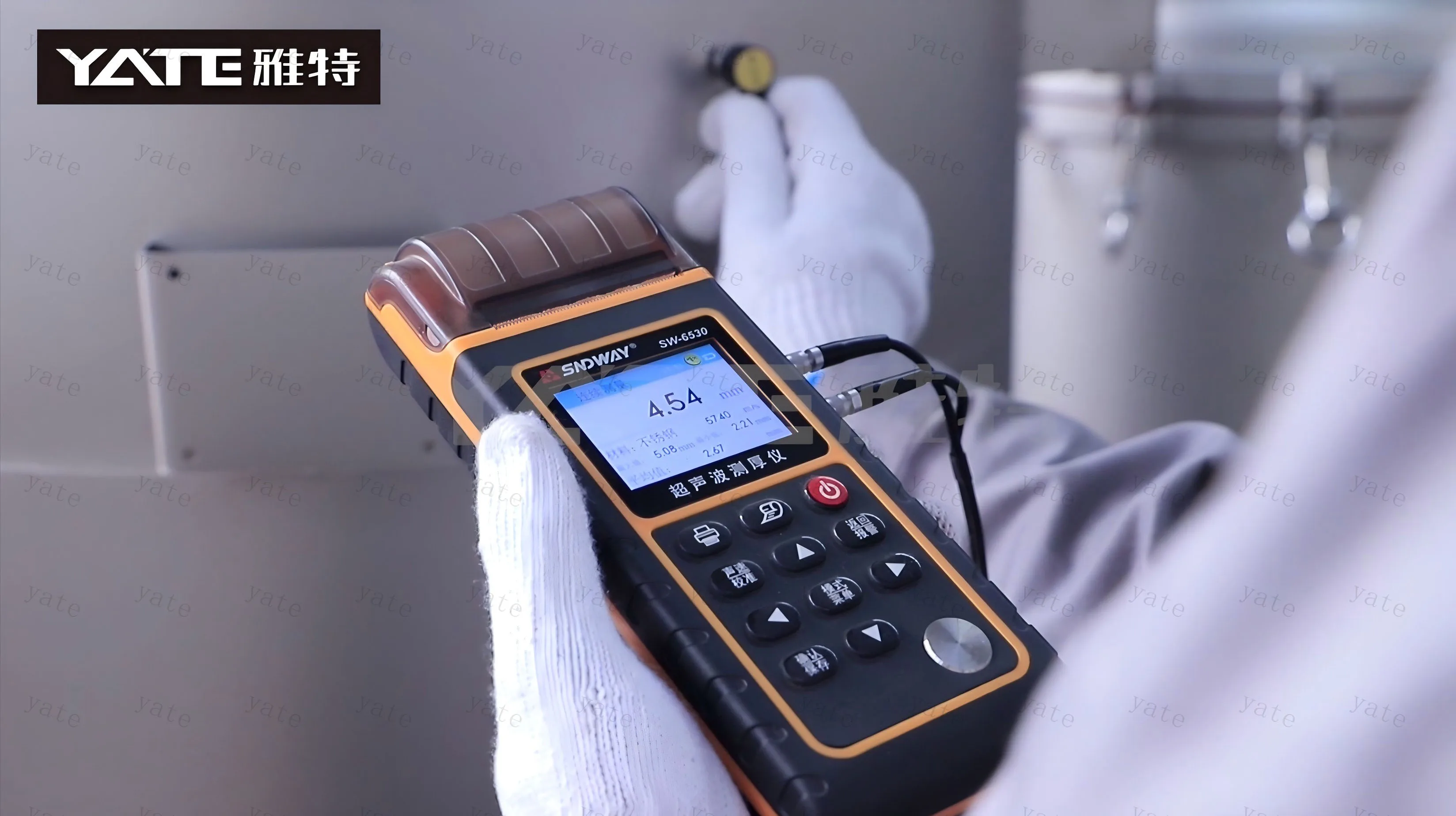

Ultrasonic Thickness Gauge

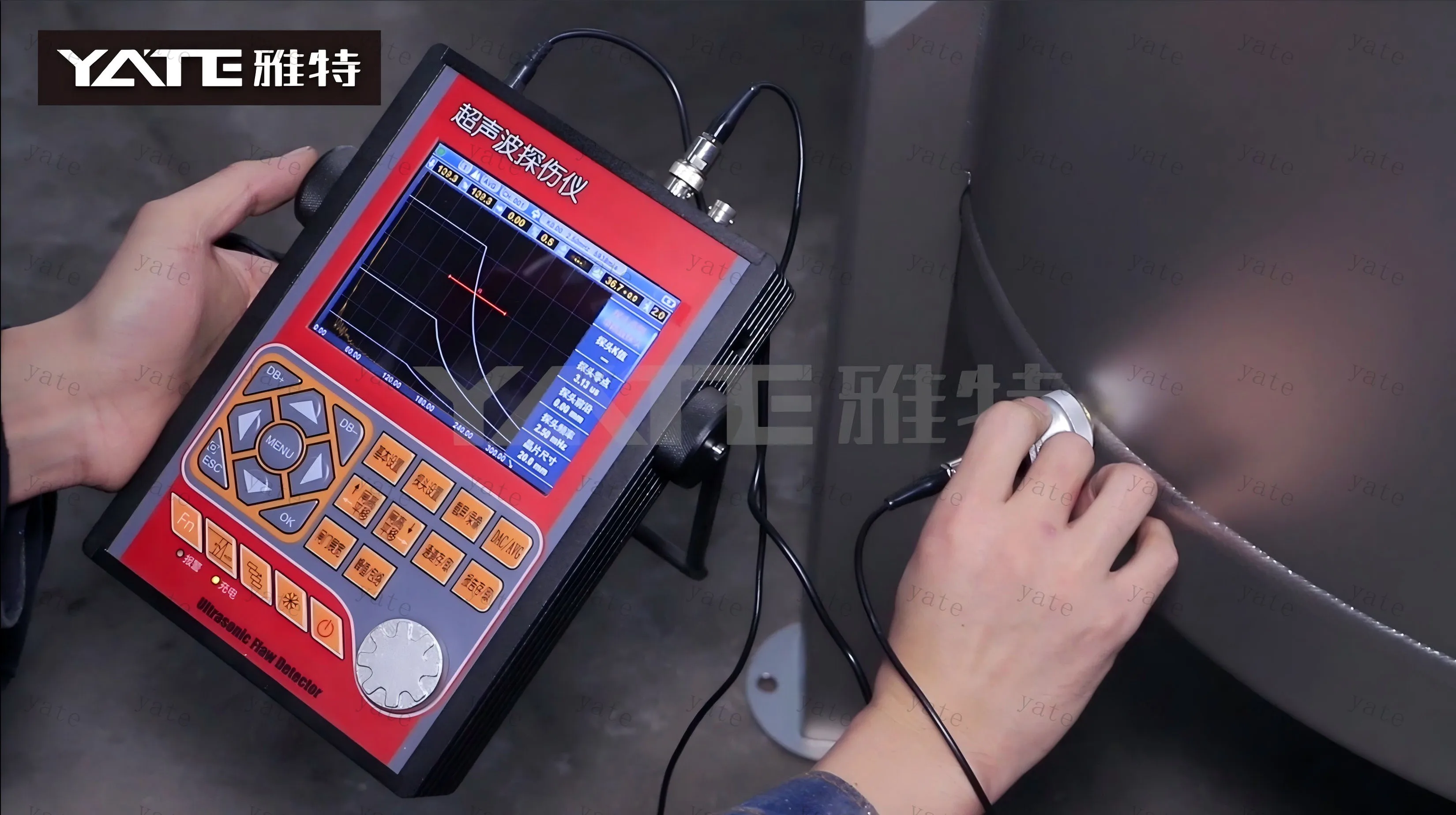

Ultrasonic flaw detector

Ultrasonic Thickness Gauge

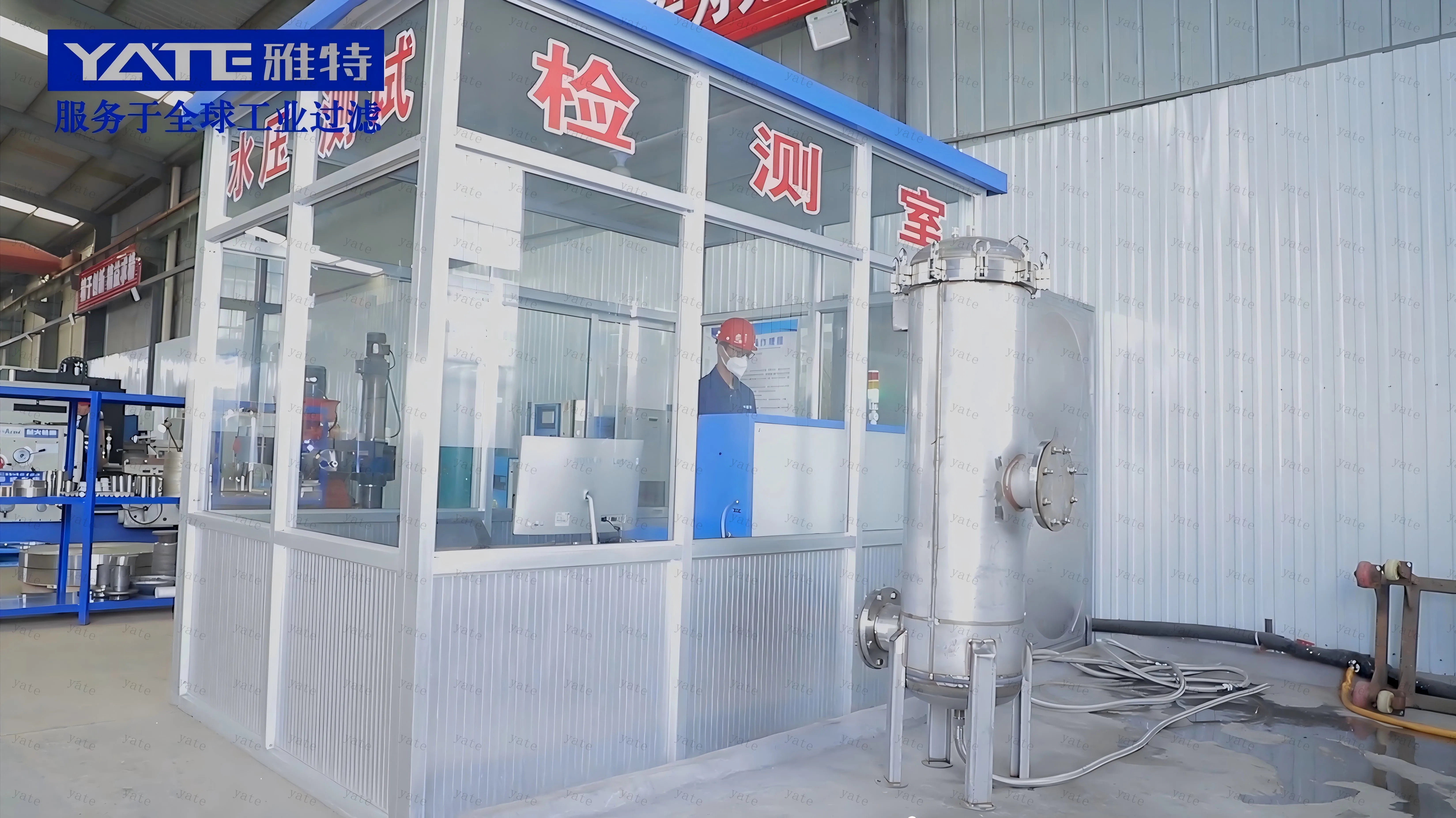

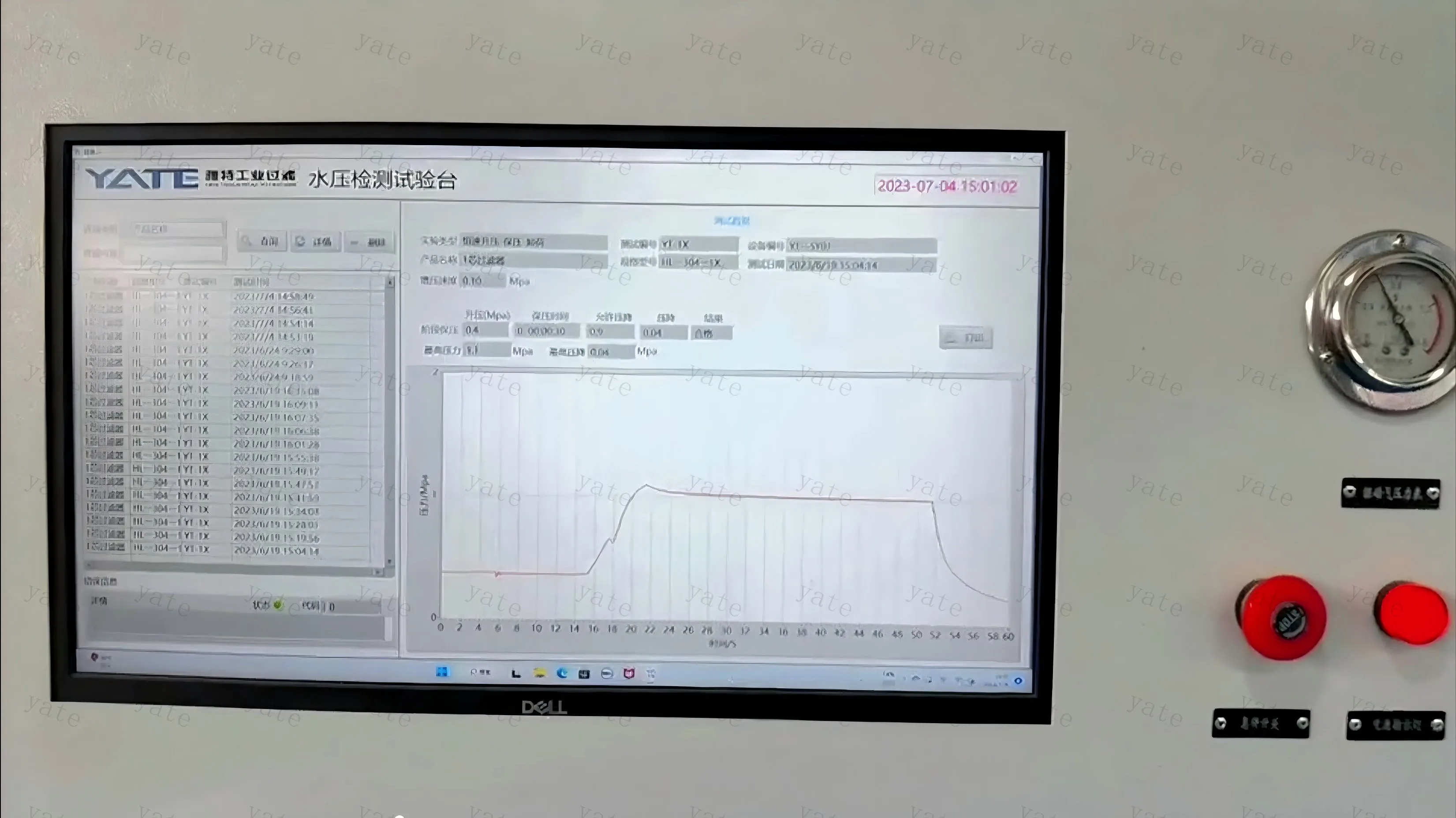

Water pressure test
